SKC400 SINGLE-USE MAGNETIC MIXING SYSTEM-WUHAN CEKG TECH. CO., LTD.

Location: Home > Products > Fluid Storage System

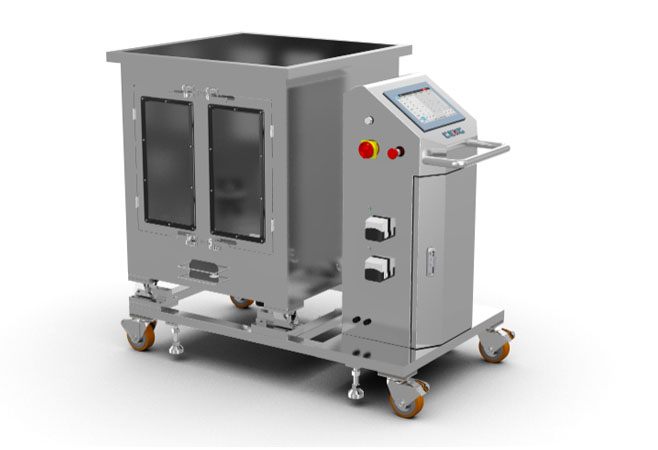

SKC400 SINGLE-USE MAGNETIC MIXING SYSTEM

SKC400 Single-use Magnetic mixing system is a stable and high efficient system with stainless steel liquid container to meet requirements of liquid-liquid/solid-liquid mixing etc.

Product Description
Product Application
Technical Parameter
Go Back

SKC400 Single-use Magnetic mixing system adopts brand components from domestic and abroad. The equipment has a neat appearance, easy to clean and disinfect, concise human-machine interface, stable process control and convenient operation.

SKC400 Single-use Magnetic mixing system is a stable and high efficient system with stainless steel liquid container to meet requirements of liquid-liquid/solid-liquid mixing etc.

SKC400 Single-use Magnetic mixing system composed of master controller, universal magnetic drive unit, single-use bag with magnetic impeller, and a stainless steel container.

01 Medium mixing and prepared.

02 Mixing for vaccine adjuvant.

03 Mixing pH or conductivity of intermediate product in purification process.

04 Ultra filtration and semi-finished product prepared.

05 Dilution preparation of concentrated buffer.

SKC400 SPECIFICATION

Control System	Siemens color touch screen, ethernet interface, USB interface, human-machine interface, and save data
Agitator	Magnetic drive, max. speed: 300rpm
Impeller※	Single-use magnetic impeller, impeller type optional. Impeller material is PP
Agitating bag※	Standard bags or customized according to container size and volume
Container Type ※	Round and square
Load cell※	Optional
PH※	Optional
Conductivity※	Optional
Temperature※	Optional
Dissolved oxygen※	Optional
Jacket design※	Optional. for low-temperature mixing
Software design※	Optional. 3 level security, audit trail, batch report, electronic signature, and GMP standards
Needle printer※	Optional
Operating temperature	No more than 45℃

Note: ※optional

SKC400 SPECIFICATION

Volume	50L	100L	200L	500L	1000L	2500L
Design	Discharge from bottom, sampling ports/addition ports and probe ports in the side
Material	SS304
Surface polished	Ra≤0.6μm
Trundle	Large castor and polyurethane material
Installation	Side operation door
