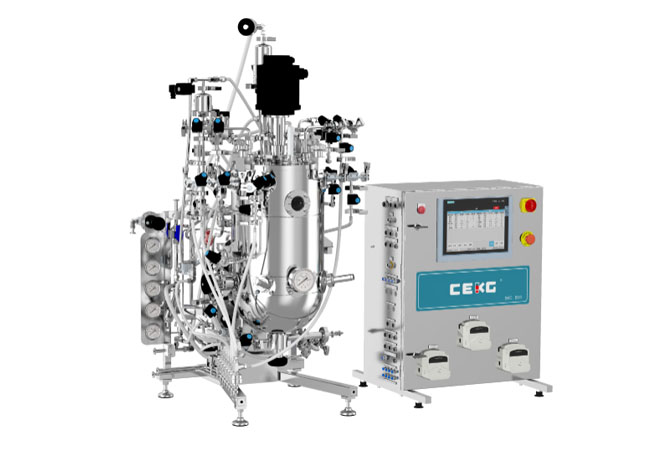

SKC800 BIOREACTOR

A bioreactor that can automatically sterilize.Adopts self-developed biological reaction process control algorithm. By stirring, temperature, pH, DO, sparger, overlay, peristaltic pump, anti-foam and liquid level, load cell, cold spot detection and additional analogy input and output to achieve batch/fed batch/continuous process.

Product Description
Product Application
Technical Parameter
Go Back

A bioreactor that can automatically sterilize.

Adopts self-developed biological reaction process control algorithm. By stirring, temperature, pH, DO, sparger, overlay, peristaltic pump, anti-foam and liquid level, load cell, cold spot detection and additional analogy input and output to achieve batch/fed batch/continuous process.

Adopts brand components from domestic and abroad. The equipment has a neat appearance, easy to clean and sterilize, concise human-machine interface, stable process control and convenient operation.

A bioreactor that compatible with cell culture stirring Impeller and bioreactors, e.g. Suspension cell culture suits pitched blade impeller or spin filter type Impeller; Perfusion culture of fabric carrier adherent cells suits packed-bed basket Impeller; Micro-carrier cell perfusion culture suits cell lift Impeller.

01 For fabric carrier adherent culture, especially for secreted products, e.g. CHO for EPO/TPO, VERO cells for human rabies vaccine/Japanese encephalitis vaccine/COVID-19 vaccines/MDCK cells for flu vaccines, etc.

02 For micro-carrier adherent culture, e.g. VERO cells/diploid cells for human rabies vaccine, etc.

03 For suspension cell culture, e.g. CHO cell antibody/SF9 cell cervical cancer vaccine, etc.

Vessel volume	Vessel volume	40L	75L	150L	300L
	Working volume	10.75L-32.0L	18.75L-60.0L	37.5L-120.0L	75．5L-240.0L
Control system	Siemens PLC, Siemens touch screen, 3 pumps, Ethernet interface, USB interface
Temperature control	Water jacket, electrical-heater PID automatic control, Pt100 sensor, control accuracy ±0.1℃, PID control, temperature control range 8-45℃ above, Max. 60℃
Agitating system ※	Agitating form	Upper mixing, double seal
	Impeller※	Pitched-blade impeller/basket impeller/cell lift impeller/spin filter impeller optional
	Agitating speed	25-200rpm	25-150rpm	25-120rpm	25-100rpm
Load cell	Load cell mould	0-40KG, cascaded by peristaltic pump optional	0-100KG, cascaded by peristaltic pump optional	0-200KG, cascaded by peristaltic pump optional	0-300KG, cascaded by peristaltic pump optional
Sparger ※	4 gas mixing, 1 or 4 thermal mass flow controllers optional
Overlay ※	4 gas mixing, 1 or 4 thermal mass flow controllers optional
Exhaust	Exhaust condenser, exhaust filter heater
Gas distributor ※	Circinate. Micro and macro sparge optional
pH※	2-12, PID control cascaded by pumps/gas flow. ISM probe optional
DO※	0-200%, PID control, cascaded by agitation/pumps/gas flow. ISM probe/optical probe optional
Sterilization	Automatic SIP
Cold spot detection ※	Optional
Pumps ※	Fixed-speed pumps for addition/acid/base/anti-foam etc., speed 100PRM,
Level and anti-foam ※	1 level electrode. High level electrode optional
SCADA software ※	Optional. GMP/GAMP standards.
Utilities	Water: 50um filtration; industrial steam 30-35PSIG, pure steam 30-35PSIG; 4 gases 30-35PSIG
Power supply	AC220V, 50/60HZ, 20A
