SKC900 STIRRED BIOREACTOR-WUHAN CEKG TECH. CO., LTD.

Location: Home > Products > Single-use Stirred Bioreactor

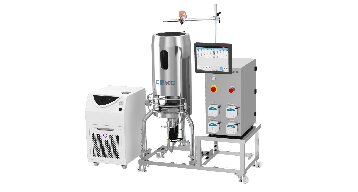

SKC900 STIRRED BIOREACTOR

SKC900 single-use stirred bioreactor is including the excellent mixing and stirring effects of traditional stirred bioreactor, besides it’s including single-use advantages of easy operation, no need for cleaning validation, and no need for sterilization, therefore It is an ideal equipment for production of vaccine, recombination protein and monoclonal antibody.

Product Description
Product Application
Technical Parameter
Go Back

SKC900 single-use stirred bioreactor composed of a stainless steel container, a single-use cell culture bag and a controller equipped with excellent sensors.

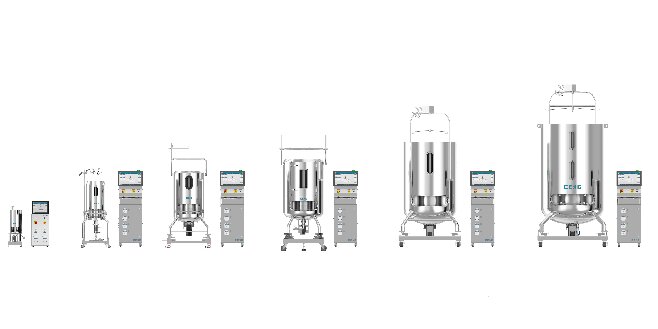

SKC900 single-use stirred bioreactor can match the bags volume from 50L to 2000L, and is easy to achieve suspension cell culture and micro-carrier/fabric carrier adherent cell culture.

SKC900 single-use stirred bioreactor can simplify the scale-up process, and be easily converted between stainless steel and single use bioreactors, reduce the risk of bioprocess transfer.

Suspension cell culture；

Adherent cell culture on micro-carriers or fabric carriers；

Culture of mammalian cells/insect/stem cells；

Medium and low density microbial cell culture；

Pilot scale production；

R&D scale-up process；

Large-scale seed culture；

Production of vaccines, recombination proteins and antibodies.

Container size	50L	200L	500L	1000L	2000L
Bag volume	50L	200L	500L	1000L	2000L
Controller system	Siemens PLC, 15-inch Siemens color touch screen, Ethernet interface, USB interface.
Temperature control	Water jacket, PID automatic control, Pt100 sensor, accuracy ±0.5℃, PID control, temperature range 8-45℃,Max. 60℃
Max. speed	360RPM	350RPM	250RPM	140RPM	115RPM
Gas※	4 thermal mass flow controller(Air/O2/N2/CO2), 1 thermal mass flow controller with 3 gas mixer and overlay optional
Exhaust ※	filter heater/0.2μm air filter
Exhaust analysis	O2 ( 0-50%), CO2 ( 0-15%)
Gas pressure control	Measured and controlled
pH※	1. Single-use fiber pH probe, control range: 6-8, accuracy:±0.05pH; PID control; cascaded by peristaltic pump/carbon dioxide concentration etc.
	2. Repeatable use of traditional pH probe with sterilizable electrode adapter, control range: 4-10, PID control, cascaded by peristaltic pump, carbon dioxide concentration, etc.
DO※	1. Single-use fiber DO electrode, range: 0-100%, PID control; cascaded by rocker speed/MFC etc.
	2. Repeatable use of traditional DO probe with sterilizable electrode adapter, range: 0-100%,PID control, cascaded by rocker speed/MFC etc.
Pumps※	4 fixed-speed pumps for addition/acid/base/anti-foam etc., 25PRM/100PRM variable-speed pumps optional
Load cell ※	Optional
Signal interface※	Optional
Utilities	Air/O2/N2/CO2; Requirement :30-35 psig
Power supply	AC220V,50/60HZ,20A

Note: ※Optional
