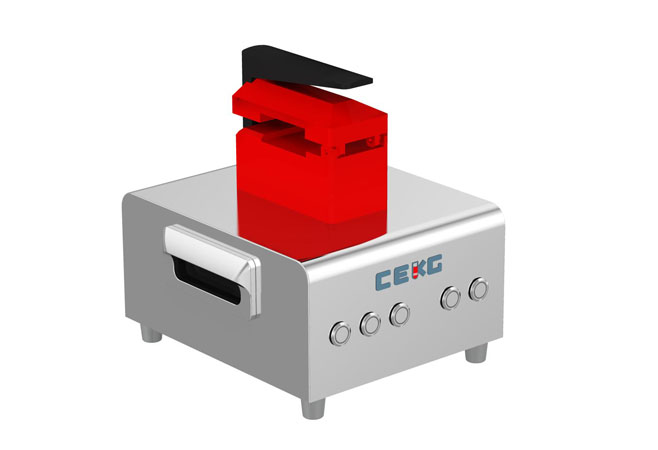

Biosealer

The sterile pipe sealing machine can be used to disconnect single components of a single bag or bag component in a non-sterile environment and maintain the sterility of the product. It is a fully automatic process equipment specifically for sterile disconnection of TPE lines.

Product Description
Product Application
Technical Parameter
Go Back

Biosealer is a fully automated device for disconnecting thermoplastic tubing in a sterile sealing operation. This proven technology allows for sterile disconnection of tubing.

Biosealer is used to disconnect thermoplastic tubing (TPE) such as C-FLEX、PharMed BPT、Advantaflflex on single-use assemblies used in biopharmaceutical manufacturing processes. Individual components of assemblies can be disconnected in a non-sterile environment while maintaining sterility of the product.

Tubing sizes	1/8”1/4": 1/4”7/16": 3/8”5/8": I/2”3/4”(standard). Customized
Tubing type	Compliant C-FLEX、PharMed BPT、Advantaflflex and TPE tube
Weight	Approx. 4KG
Material	Stainless steel, sterilized with 75% alcohol
Power	100-240V,47-63Hz
Sealing time	1.5-5min
Cooling method	Air cooling
Operating temperature	Room temperature, with 35-65% relative humidity
