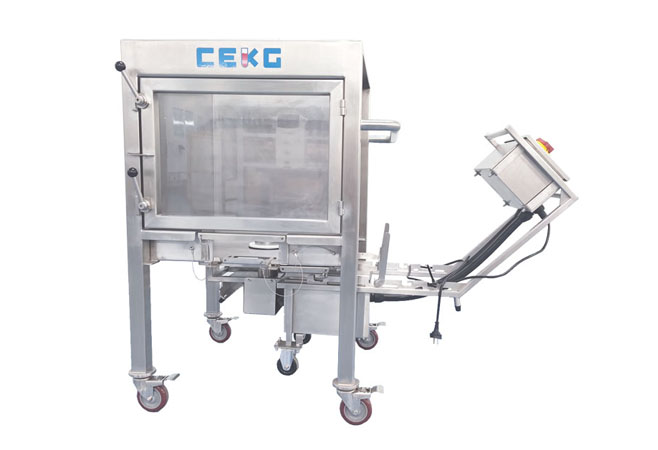

    SKC400 STORAGE SYSTEM

    SKC400 STORAGE SYSTEM

    SKC400 Single-use storage system is a stable and high efficient system with stainless steel liquid container to meet requirements of low temperature storage.
    Share:
    Inquiry
    Contact Us

    SKC400 Single-use storage system adopts brand components from domestic and abroad. The equipment has a neat appearance, easy to clean and disinfect, concise human-machine interface, stable process control and convenient operation.

    SKC400 Single-use storage system is a stable and high efficient system with stainless steel liquid container to meet requirements of low temperature storage.

    SKC400 Single-use storage system composed of master controller, single-use storage bags, and stainless steel containers.

    Single-use storage bags are independently produced by ourselves with validation and stable long-term supply.

    01 Medium storage.

    02 Intermediate storage.

    03 Buffer storage.

    04 Continuous low-temperature harvesting and storage of medium or virus medium.

    05 Low temperature storage.


    SPECIFICATION

    Control system ※

    Siemens color touch screen, Ethernet interface, USB interface

    Storage bag※

    Standard bags or customization

    Container Type ※

    Round and square

    Load cell※

    Optional

    pH※

    Optional

    Conductivity※

    Optional

    Temperature※

    Optional

    Dissolved oxygen※

    Optional

    Jacket design※

    Optional. For low-temperature mixing

    Software design※

    Optional. 3 level security, audit trail, batch report, electronic signature, and GMP standards

    Needle printer※

    Optional

    Operating temperature

    No more than 45℃

    Note: ※Optional

    SPECIFICATION

    Volume

    50L

    100L

    200L

    500L

    1000L

    2500L

    Design

    Discharge from bottom. Sampling ports/addition ports and probe ports in the side

    Material

    SS304

    Surface polished

    Ra≤0.6μm

    Trundle

    Large castor and polyurethane material

    Installation

    Side operation door
