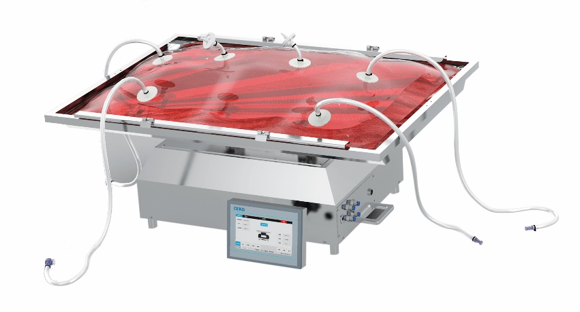

SKC400 ROCKER MIXER

The rocker mixer adopts non-intrusive wave mixing, which avoids the shearing force damage to the mixture by the end of the stirring blade. Compared with the stirring type mixer, it can provide a mild and low-shear mixing condition.

Product Description
Product Application
Technical Parameter
Go Back

For cells/viruses/plasmids and decomposable medium, our company has developed a low temperature(5°C or below) rocker mixer and meet the requirements of low shear force with high mixing efficiency.

01 Plasmid mixing and plasmid lysis.

02 Mix the virus liquid under low shear force and low temperature.

03 Dilution preparation of concentrated buffer.

04 Mixing pH or conductivity of intermediate product.

05 Part of ADC reaction container.

06 Preparation of semi-finished products.

07 Mixing in a low temperature condition or easy decomposed medium.

Tray size	10L	20L	50L	200L
Total Mixing bag volume	2L/5L/10L	10L/20L	20L/50L	100L/200L
Processing capacity	1L-5L	2L-10L	5L-25L	20L-100L
Control system	Siemens color touch screen, Ethernet interface, USB interface
Mixing system	Mixing time, rocker speed and rocker angle (if any) automatically stop after mixing.
HMI	Alarm record interface/trend graph interface/calibration interface /time cascade interface, etc.
Rocker speed	1-40rpm			1-25RPM
Lid ※	Optional
Tilt angle※	Optional. Range: 1-12°			1-10°
Conductivity detection※	Optional
pH detection※	Optional. Range: 5-9
Temperature control※	Optional. PID automatic control, accuracy: ±0.2℃; Temperature control range: 5-40℃ max. 60℃
Low temperature control※	Optional. Low temperature refrigerant to control the low temperature, PID control, 5 ℃ or below
Pumps ※	Optional. 1-3 fixed-speed/variable-speed peristaltic pumps
Load cell ※	Optional
SCADA Software ※	Optional. 3 level security, audit trail, batch report, electronic signature, and GMP standards
Power Supply	AC220V, 50/60HZ, 10A			AC220V, 50/60HZ, 16A

Note: ※Optional

Recommend Product

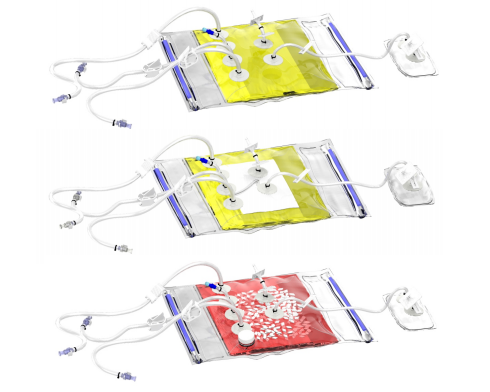

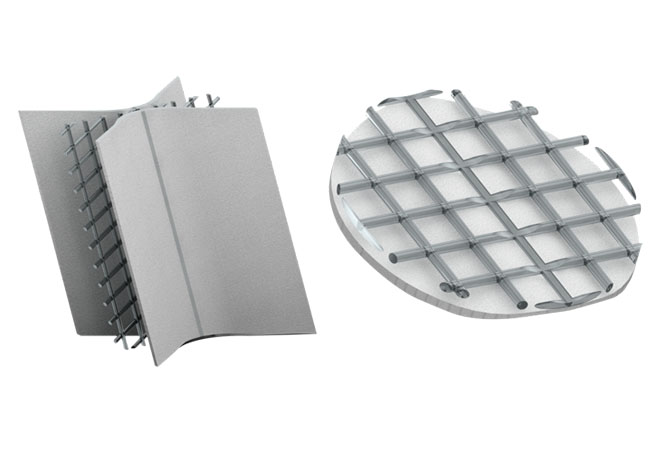

CELL CULTURE BAG

SUSPENSION CELL CULTURE BAG. PERFUSION MEMBRANE CELL CULTURE BAG. FABRIC CARRIER CELL CULTURE BAG.

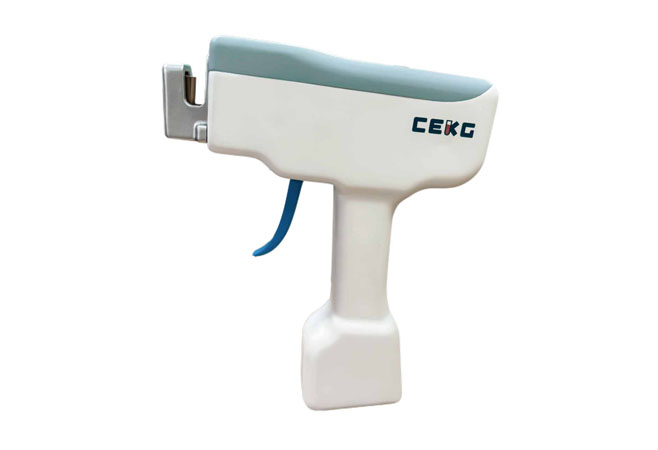

PVC Biowelder

The PVC tubing biowelder fuses the tube and connects the tube at high temperature. The equipment can be used to connect the wet-wet, dry-dry, wet-dry PVC lines.

SKC900 STIRRED BIOREACTOR

SKC900 single-use stirred bioreactor is including the excellent mixing and stirring effects of traditional stirred bioreactor, besides it’s including single-use advantages of easy operation, no need for cleaning validation, and no need for sterilization, therefore It is an ideal equipment for production of vaccine, recombination protein and monoclonal antibody.

SKC600 10L/20L/50L BIOREACTOR

SKC600 Bioreactor is developed for cell culture. It uses a rocker platform to place single-use suspension cell culture bags or single-use cell culture bags(produced by ourselves).

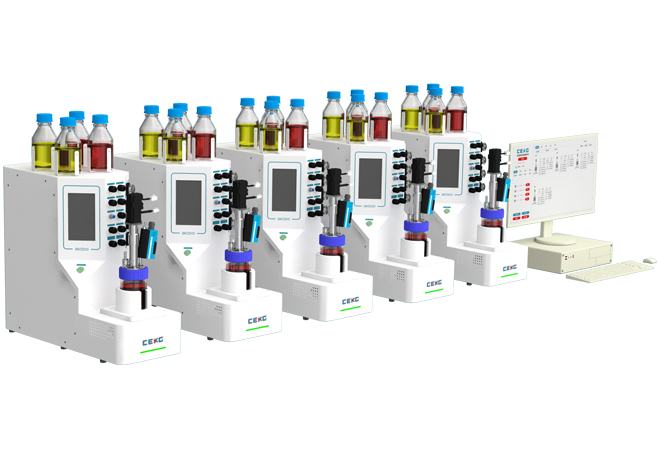

SKC715 MICROBIAL FERMENTOR
